Best Compact Equipment for Preparing a Water Well Site
2/13/2026
Drilling a water well on your rural Tennessee property involves carefully preparing the site before the drilling rig arrives. Professional drilling equipment weighs thousands of pounds and can extend up to 40 feet. That means you need solid access roads and a level drilling pad to avoid delays and extra costs.
The right compact construction equipment makes well site preparation easy and saves you money on costly contractor fees. Tennessee Tractor carries the equipment you need to prepare your property for successful water well drilling. Ready to discover the essential equipment needed for proper water well site preparation? Let's dive in.
Water well site preparation requires easy and well-maintained access roads for heavy equipment, clearing vegetation and debris, creating a level drilling pad, and establishing proper drainage around the work area. Sites must accommodate drilling rigs weighing thousands of pounds, plus support vehicles and water trucks.
Tennessee regulations require wells to sit at least 50 feet from septic systems, 100 feet from animal lots, and 200 feet from sewage lagoons. Your drilling contractor needs a flat, stable surface with gravel access roads that can support heavy loads, especially during the wet fall and winter months when Tennessee soil turns muddy from rain and snow.
Compact excavators handle the heavy lifting during initial site prep. These machines are great at clearing vegetation, removing tree stumps, and digging drainage trenches around your future well site.
Compact excavator models from the 17G (7.2 feet max digging depth) to the 60G (12.4 feet max digging depth) help to remove obstacles like tree stumps and brush, while also providing digging depth for light site preparation and drainage work. The smaller 17G and 26G models work well in tight spaces between existing trees and buildings, while larger models like the 50G and 60G tackle bigger clearing jobs and deeper drainage work.
You can also use compact excavators to remove stumps and root systems that could interfere with site access roads.
Building a solid access road is critical for water well projects. Drilling contractors need stable roadways with gravel bases to move their 40-foot rigs safely to your chosen well location.

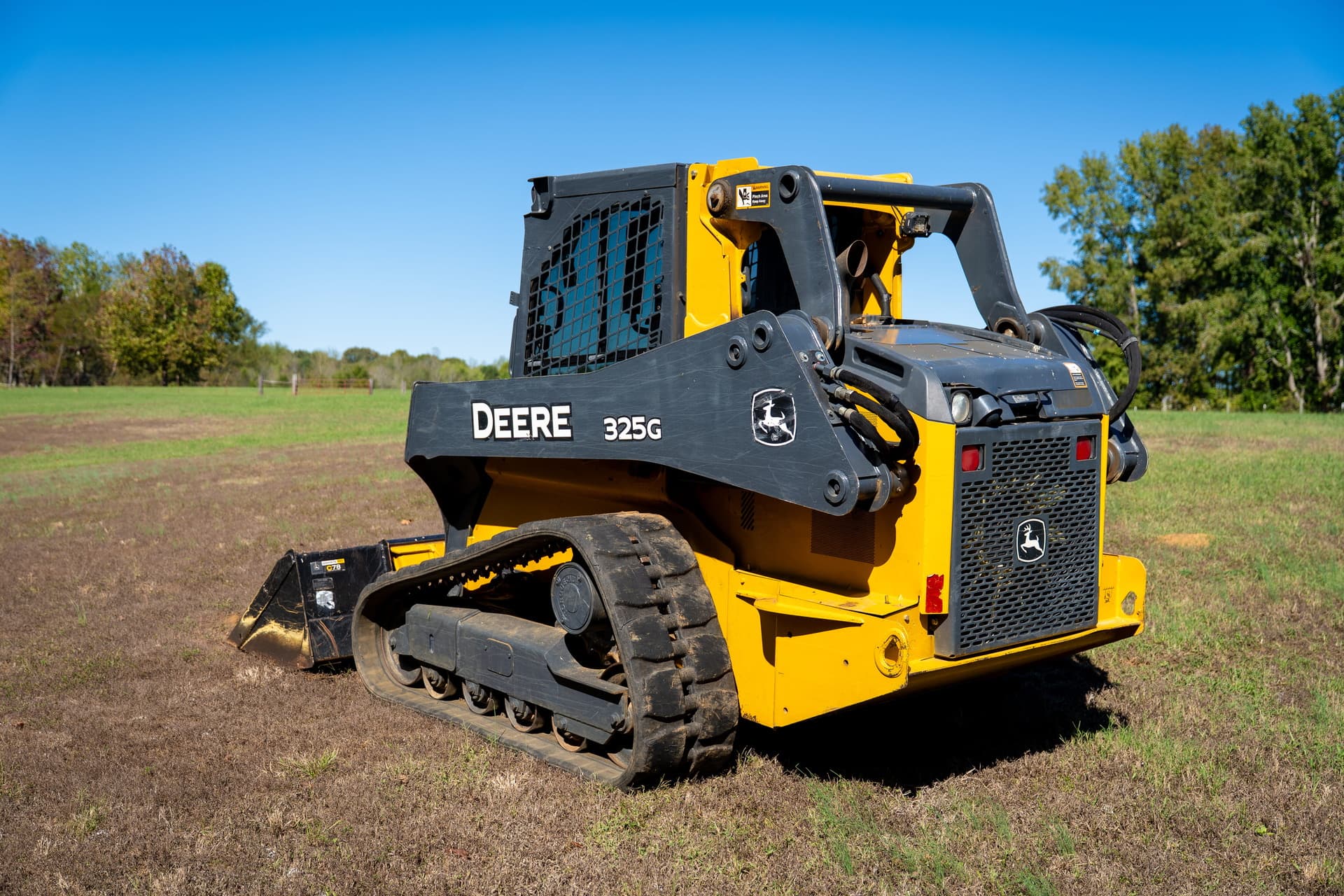

Compact track loaders excel at road construction and site grading. Tennessee Tractor offers four track loader models: the 317G (lightest footprint), 325G, 331G, and 333G (most powerful). Track loaders distribute weight across their tracks rather than wheels. This track model helps to reduce ground compaction and provides better traction on soft Tennessee soil.
The 333G track loader offers 9,250 pounds of bucket breakout force and 3,700 pounds rated operating capacity, making it ideal for moving the large volumes of gravel needed for access roads.
Drilling rigs require flat, stable pads to operate safely and drill vertical wells. A level surface prevents equipment from tipping and makes sure that wells drill straight down rather than at angles.

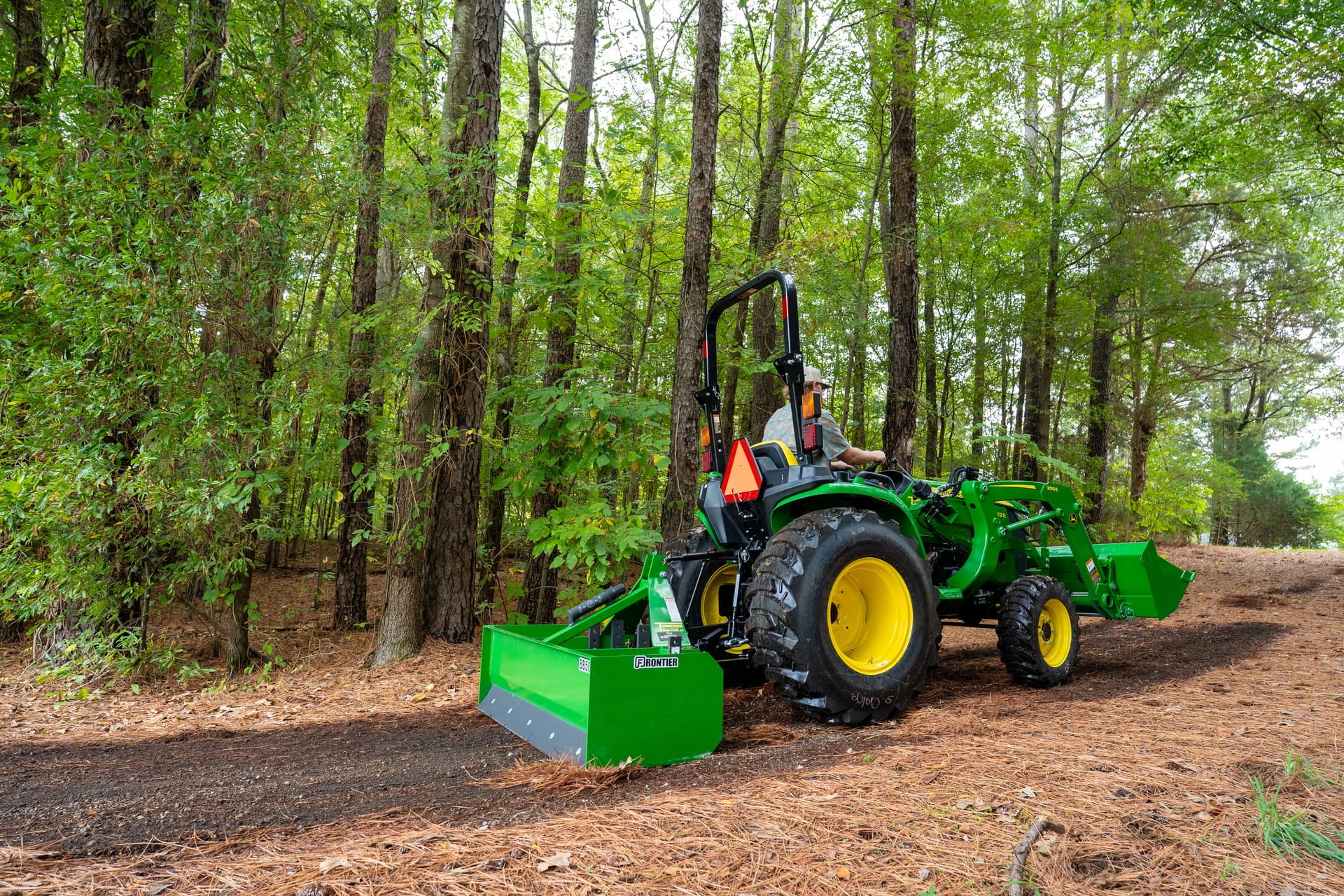

For leveling your own ground, box blades attach to compact tractors and create perfectly level surfaces through their adjustable cutting edges. Tennessee Tractor offers box blades in multiple widths, including the BB20 and larger BB50 Series models.
Box blades grade and level in a single pass. The adjustable cutting edge scrapes high spots, while the blade's box design catches and distributes soil to fill low areas. Ripper shanks on box blades also break up compacted soil and rocky ground before final grading.
For well site preparation, use box blades to create a 20-foot by 20-foot level pad where the drilling rig will set up. This gives contractors enough room to position their equipment and work safely during the drilling process.

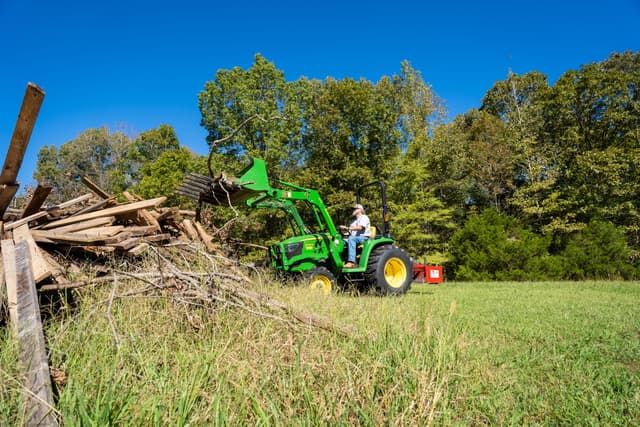

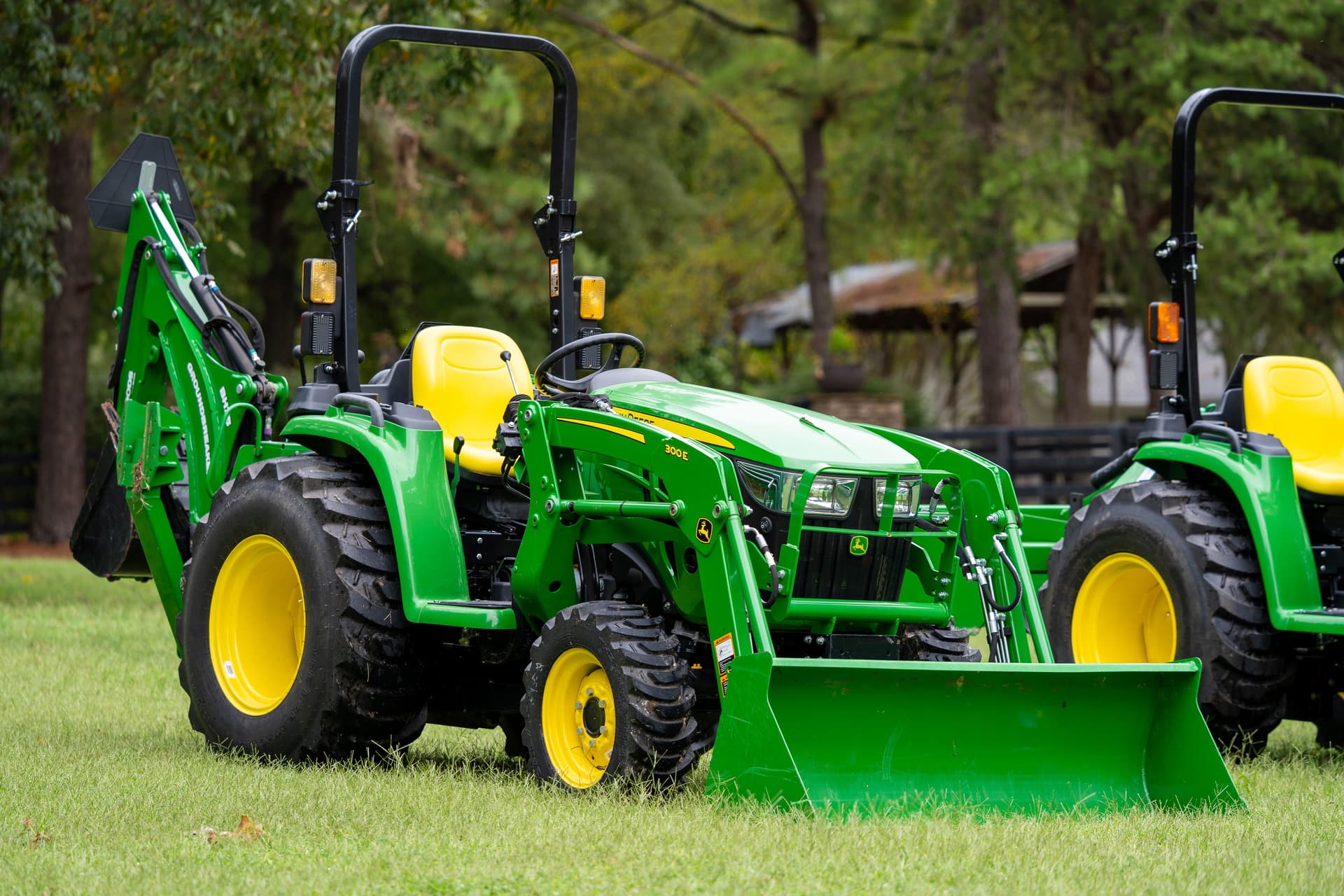

Front-end loaders transform compact tractors into material-moving workhorses. During well site preparation, you'll move substantial amounts of fill material, gravel, and soil.
Loaders lift and transport materials that would take hours to move by hand and could do a serious number on your back! Use front-end loaders to spread gravel on access roads, move topsoil for later restoration, and position fill material for final grading around the well pad.
Tennessee Tractor's compact tractors (1 Series through 4 Series) come with loader options that provide quick-attach capabilities through John Deere’s Quik-Park system. This means you can swap between your loader bucket and other attachments in under 60 seconds!
Before any grading or road building begins, you need to clear brush, fallen trees, and debris from the drilling path and work area.
Grapple attachments pick up irregular loads that buckets can't handle well. Logs, brush piles, stumps, and debris clump together when you try to move them with standard buckets, but grapples grip firmly and prevent materials from sliding off during transport.
Tennessee Tractor offers grapple attachments that mount on compact tractors and skid steer quick-attach systems. Look for grapples with closer tine spacing, which work better for grabbing smaller brush and preventing debris from falling through during transport to burn piles or disposal areas.
Professional well-drilling contractors charge by the hour, and poor site preparation adds expensive delays. Drilling rigs that get stuck in soft soil or can't access your chosen well location cost you money while contractors work to solve access problems.
Tennessee's wet seasons (fall through early spring) make site access especially challenging. Proper gravel roads and drainage prevent drilling equipment from sinking into wet and sticky soil. Sites prepared during summer or early fall handle wet weather better than last-minute preparation attempts during rainy periods.
Site preparation is just the beginning of water well installation. Once your site is ready, you need licensed professionals with specialized drilling equipment to complete the actual well.
Stop by any Tennessee Tractor location across West Tennessee to discuss your water well project. Our equipment specialists can recommend the right compact construction equipment for your site preparation needs, or connect you with a local company for complete project management.
